Description

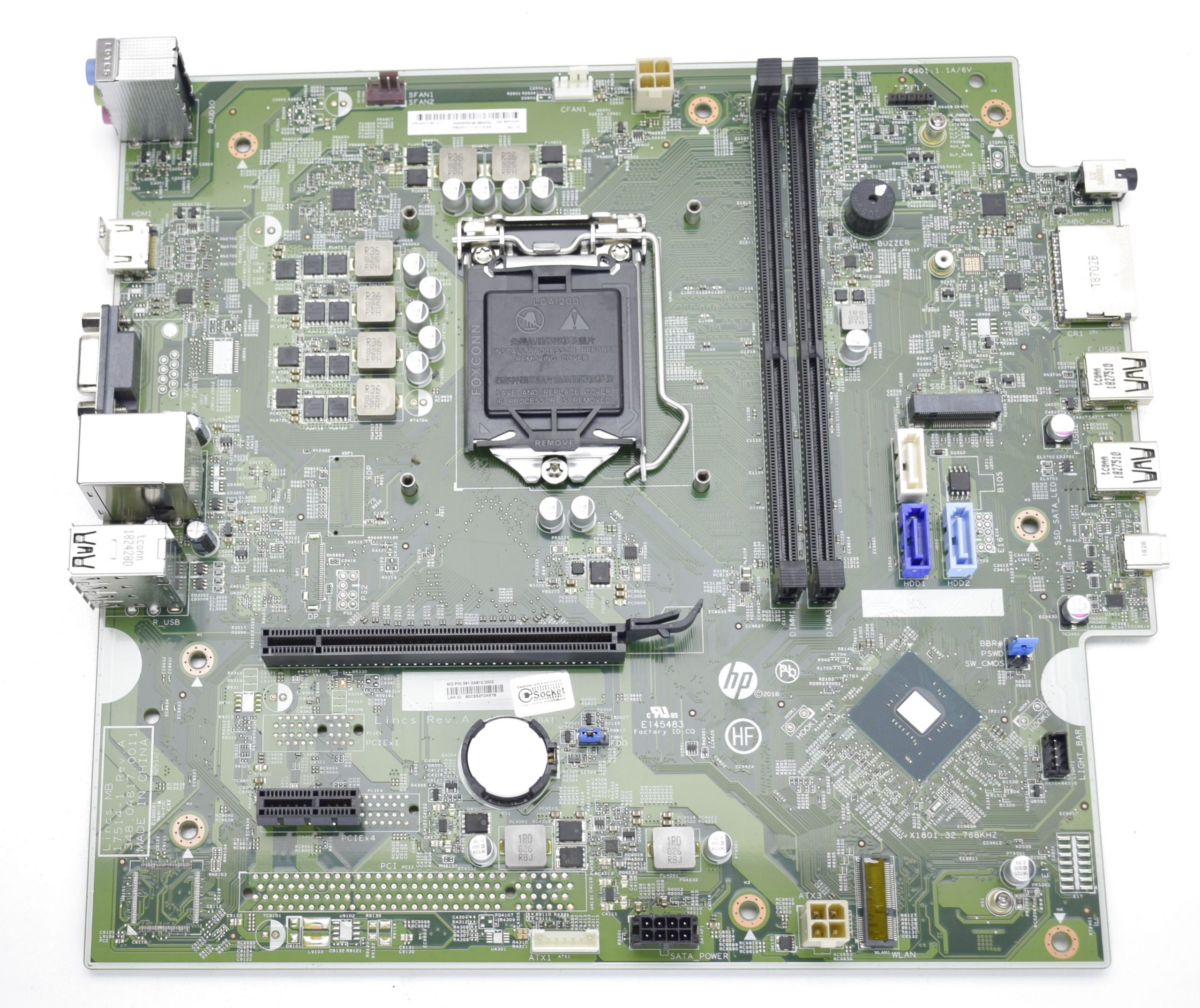

HP Pavillion 590-p 942012-601 942012-001 391.0A810.002 LGA1151 8th Gen Motherboard. All motherboards undergo complete diagnostics and testing.

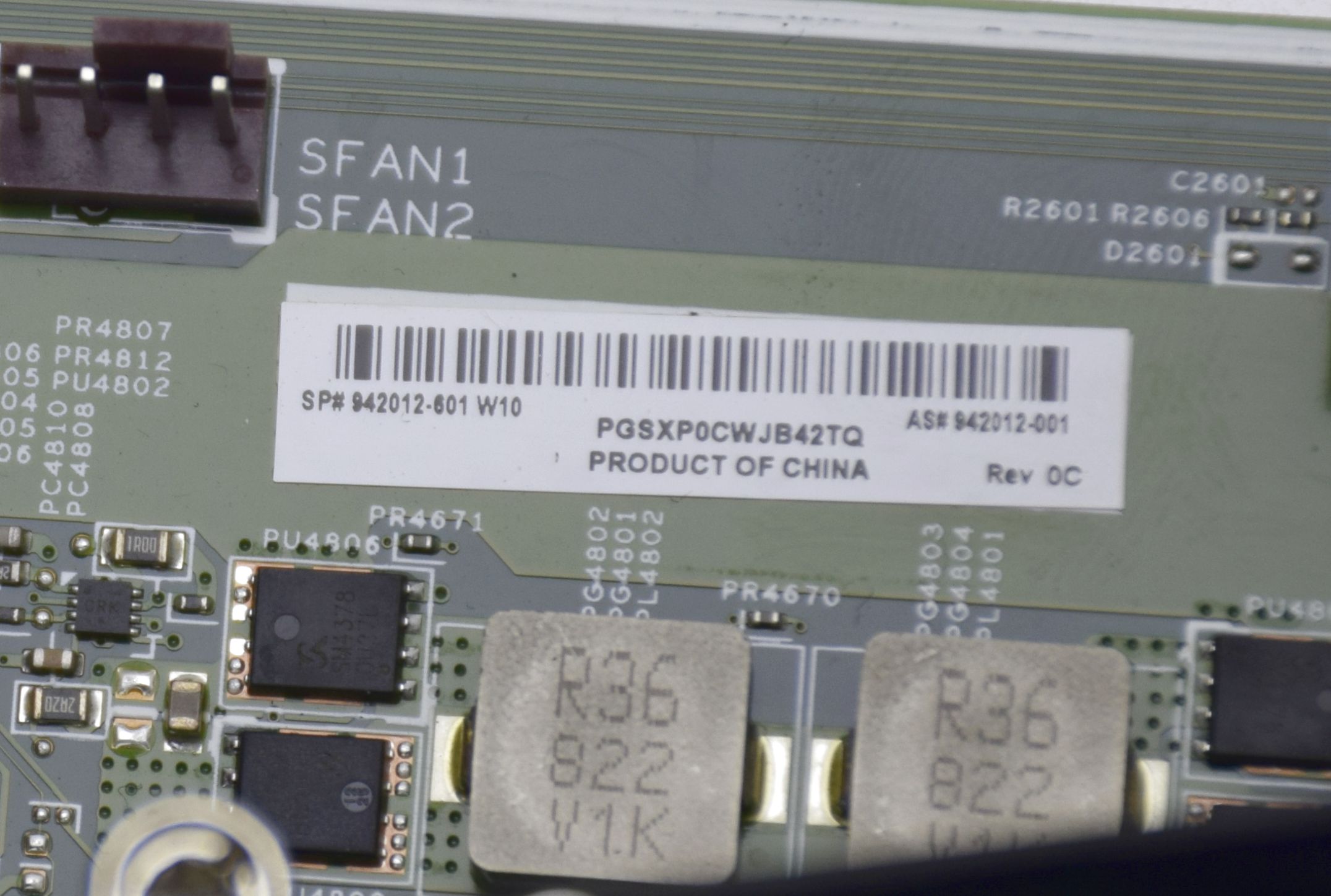

942012-601 942012-001 391.0A810.002
HP Desktop PCs – motherboard specifications, Lincs
Motherboard description
-
HP name: Lincs
-
SSID: 843B
-
Customized: 24.9 x 26.7 cm (9.80 x 10.5 in)
Chipset
-
Intel H370
Memory upgrade information
-
Dual channel memory architecture
-
Two DDR4 UDIMM (288-pin) sockets
-
Supports up to PC4-21300 (DDR4 2666)
-
Supports 4 GB and 8 GB DDR4 UDIMMs
-
Supports up to 4 GB on 32-bit systems
NOTE:
32-bit systems cannot address a full 4.0 GB of memory. -
Supports up to 32 GB (with two 16 GB modules) and 16 GB (with two 8 GB modules) on 64-bit computers

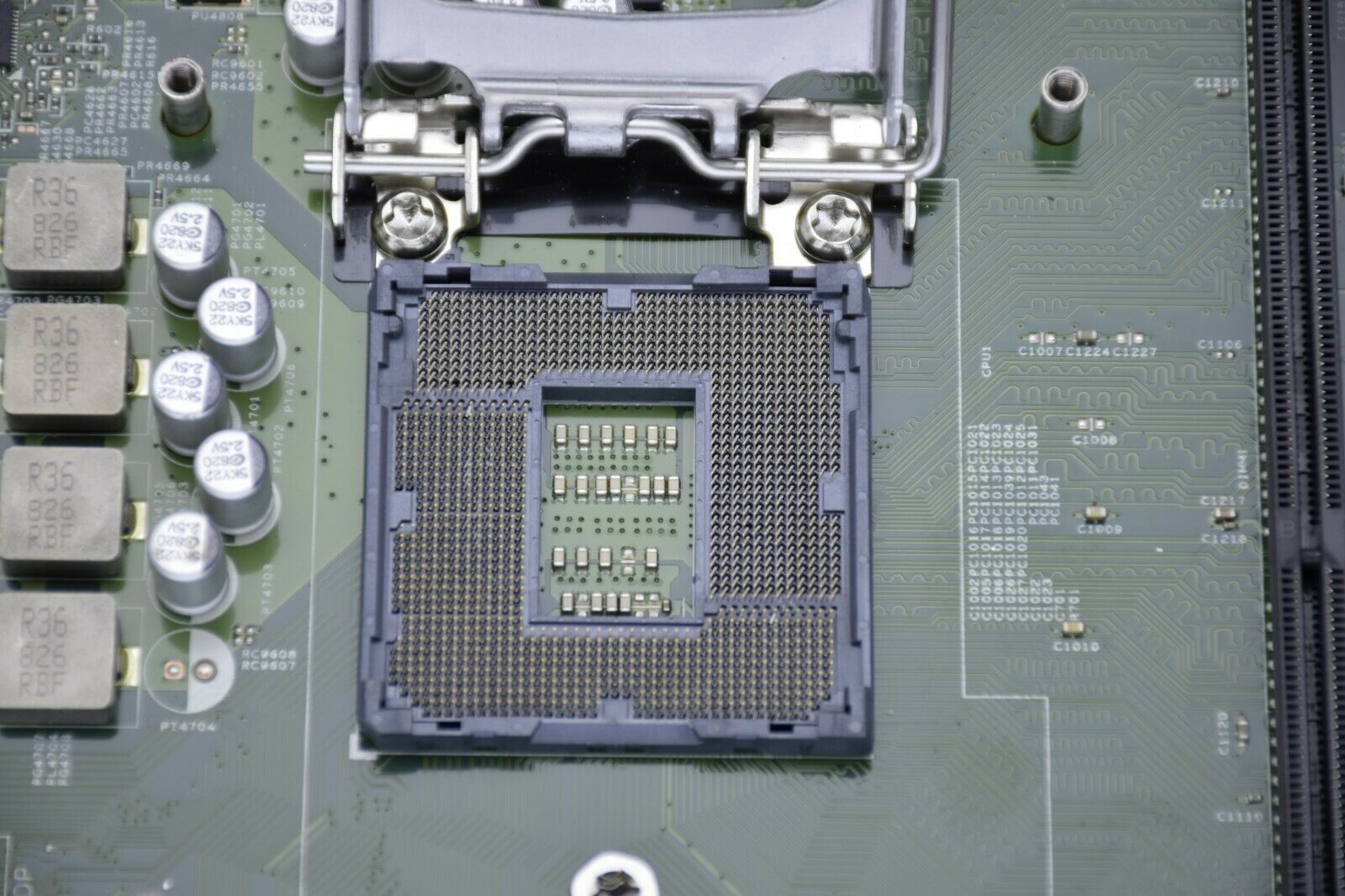

Motherboard supports processor:
ProcessorTDPIntel Core i5+ 8400 (2.8 GHz base frequency, up to 4 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores)65 WIntel Core i5-8400 (2.8 GHz base frequency, up to 4 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores)65 WIntel Core i7+ 8700 (3.2 GHz base frequency, up to 4.6 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores)65 WIntel Core i7-8700 (3.2 GHz base frequency, up to 4.6 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores)65 WIntel Core i3-8100 (3.6 GHz base frequency, 6 MB cache, 4 cores)65 WIntel Pentium Gold G5400 (3.7 GHz base frequency, 4 MB cache, 2 cores)54 W – 58 WIntel Pentium Gold G5420 3.8 GHz base frequency, 4 MB cache, 2 cores54 WIntel Celeron G4900 3.1 GHz, 2 MB cache, 2 cores54 WIntel Celeron G4930 (3.2 GHz base frequency, 2 MB cache, 2 cores)54 WIntel Core i7-9700 (3 GHz base frequency, up to 4.7 GHz with Intel Turbo Boost Technology, 12 MB cache, 8 cores65 WIntel Core i7-9700F 3 GHz base frequency, up to 4.7 GHz with Intel Turbo Boost Technology, 12 MB cache, 8 cores65 WIntel Core i5-9400 2.9 GHz base frequency, up to 4.1 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores65 WIntel Core i5-9400F 2.9 GHz base frequency, up to 4.1 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores65 WIntel Core i3-9100 3.6 GHz base frequency, up to 4.2 GHz with Intel Turbo Boost Technology, 6 MB cache, 4 cores65 W
Video
Integrated graphics
-
Integrated Intel UHD Graphics
NOTE:
Integrated video is not available if a graphics card is installed.
Audio
Integrated audio
-
Audio Codec: Realtek ALC3601
-
Audio jack presence detection
NOTE:
Integrated audio is not available if a sound card is installed.
Network
LAN: 1000BASE-T
-
Technology: Realtek RTL8111HSH
-
Data transfer speeds: up to 10/100/1000 Mb/s
-
Transmission standards: 1000BASE-T Ethernet
Expansion Slots
-
One PCIe x16 socket
-
One PCIe x1 socket
-
One M.2 socket 1, 2230 type for WLAN
-
One M.2 socket 3, 2280 type for SSD
I/O Ports and Jumpers

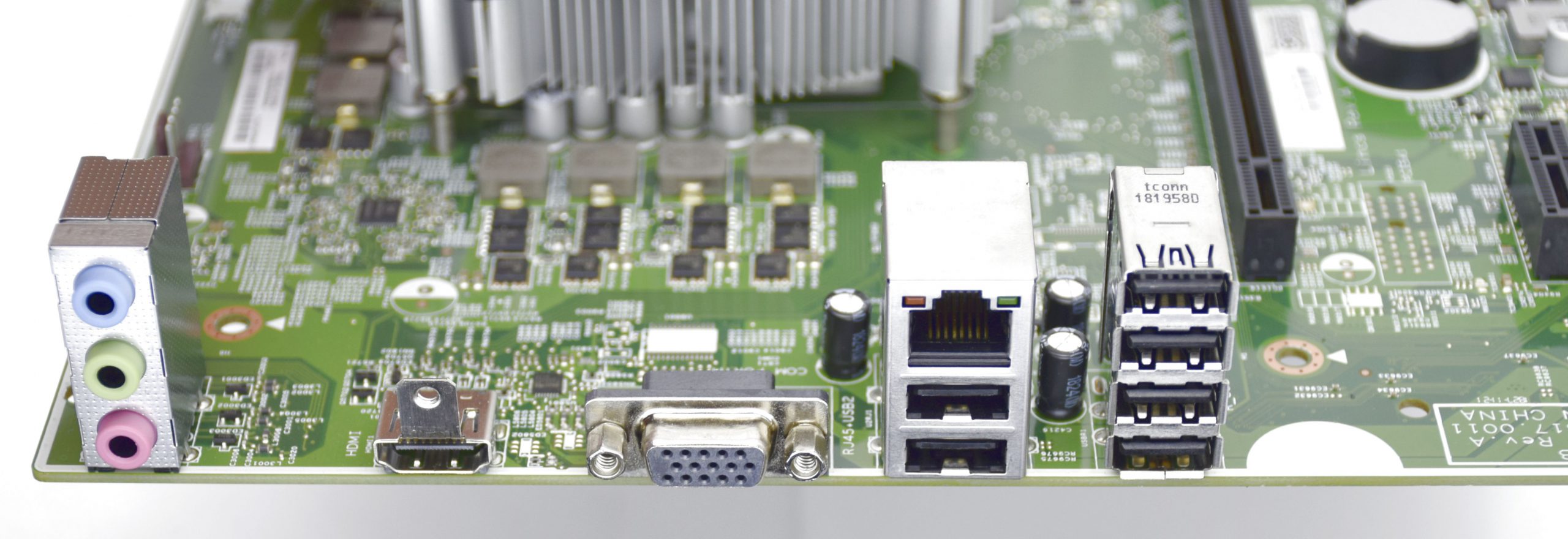

Back I/O ports
NOTE:
The configuration might vary depending on your model (for example, if a dedicated graphics card is included). Any modifications or upgrades might change the configuration, port accessibility, and port functionality.
Lincs Back I/O ports
Jumpers

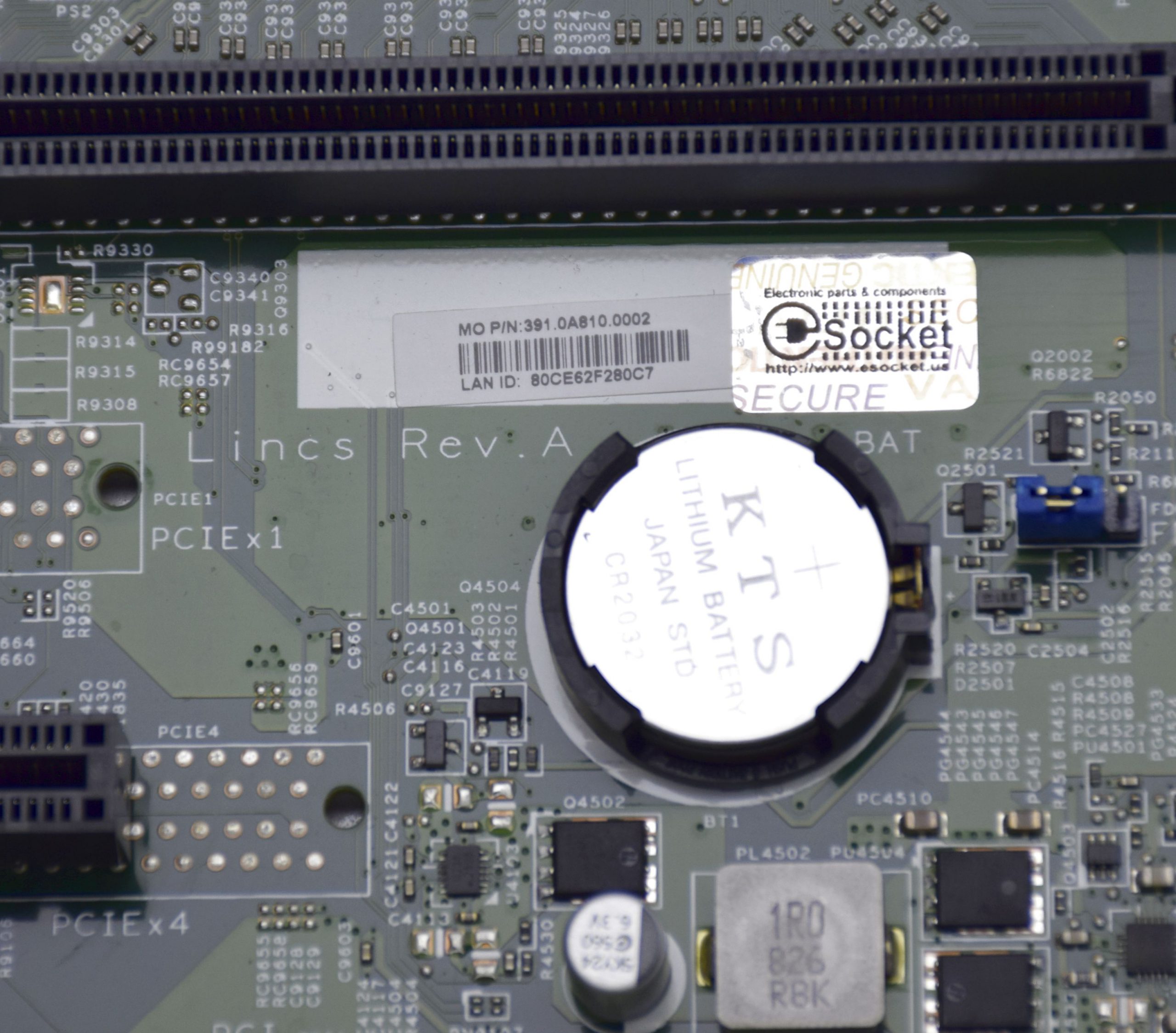

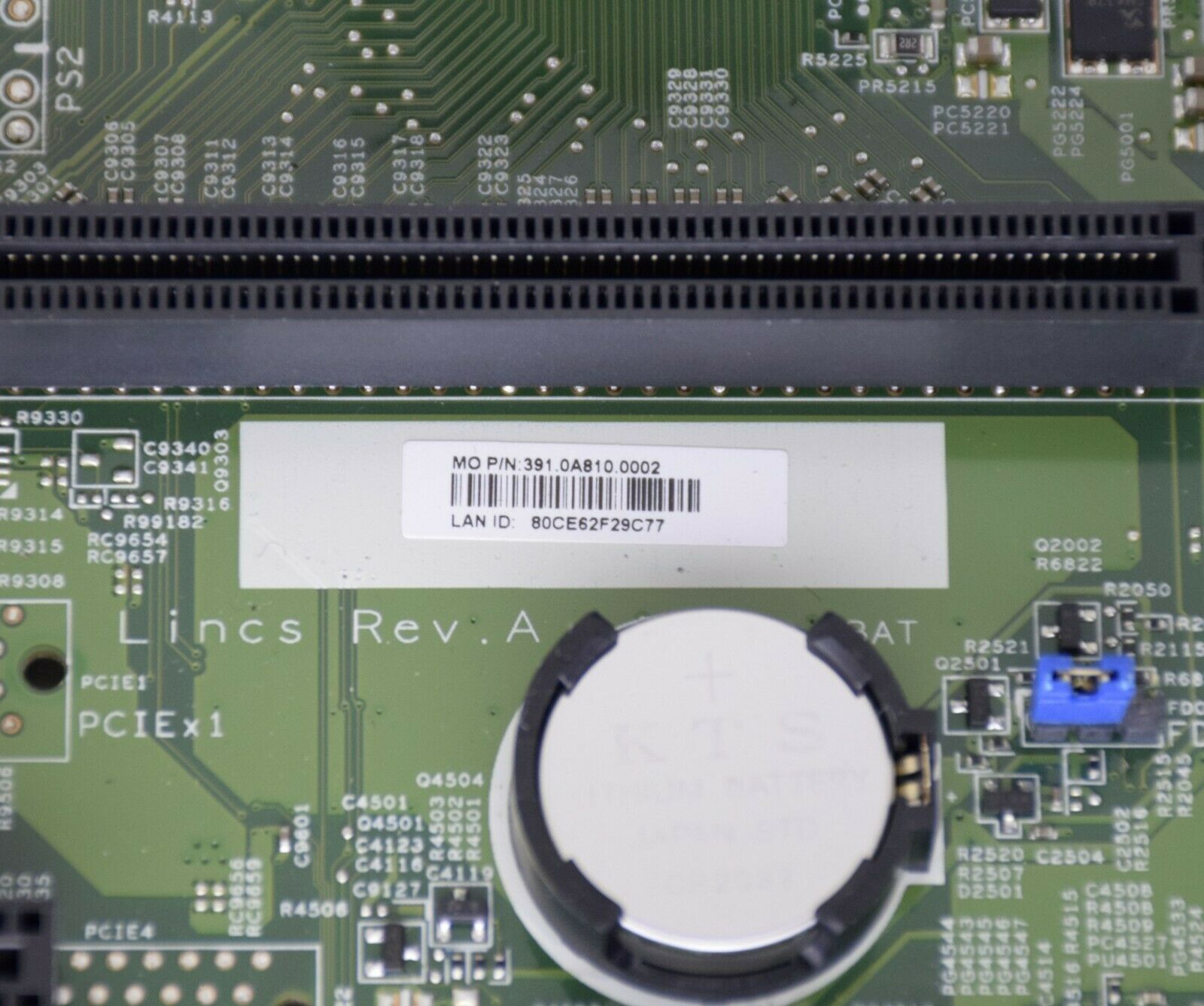

Figure : Clear CMOS and clear password jumpers in the default positions
