Description

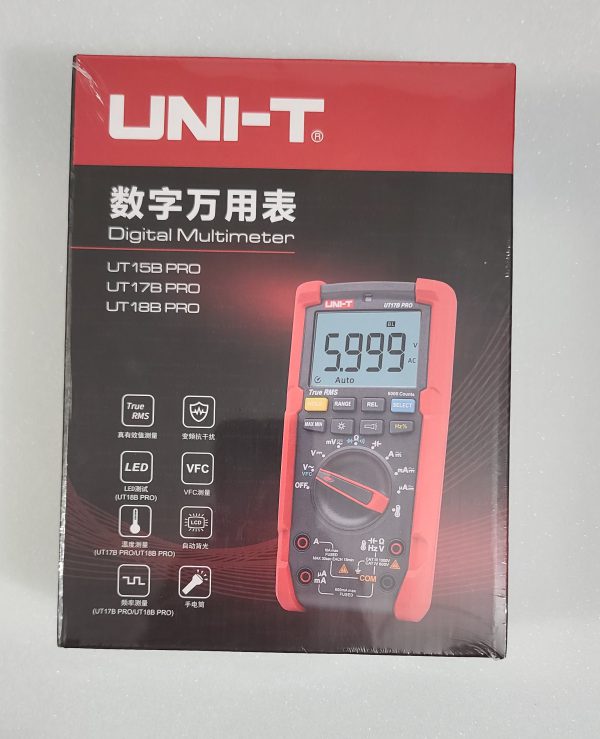

NEW UNI-T UT18B PRO True RMS Digital Multimeter VFC LED Test Voltmeter Ammeter.
Specifications of UT15B PRO/UT17B PRO/UT18B PRO 1000V True RMS Digital Multimeters
| Specifications | Range | UT18B PRO | ||
| DC voltage (V) | 1000V | ±(0.5%+3) | ||
| AC voltage (V) | 1000V | ±(1%+3) | ||
| AC current (A) | 10A | ±(1%+3) | ||
| DC current (A) | 10A | ±(0.8%+3) | ||
| Resistance (Ω) | 60MΩ | ±(0.5%+2) | ||
| Capacitance (F) | 6000μF | ±(2%+5) | ||
| Frequency (Hz) | 10Hz~100kHz | |||
| 1MHz | ±(0.1%+3) | |||
| Duty cycle | 1%~99% | ±(1%+4) | ||
| Temperature (°C/℉) | -55℃~500℃/-67℉~932℉ | ±(2%+1) |
